CLEARANCE MIRA 5 5030 40W 60W Laser Cutter Engraver Machine
CLEARANCE SALE
Use code VPD5NYRPN7NH for a discount of Ā£1,050.00 (net), including stand.

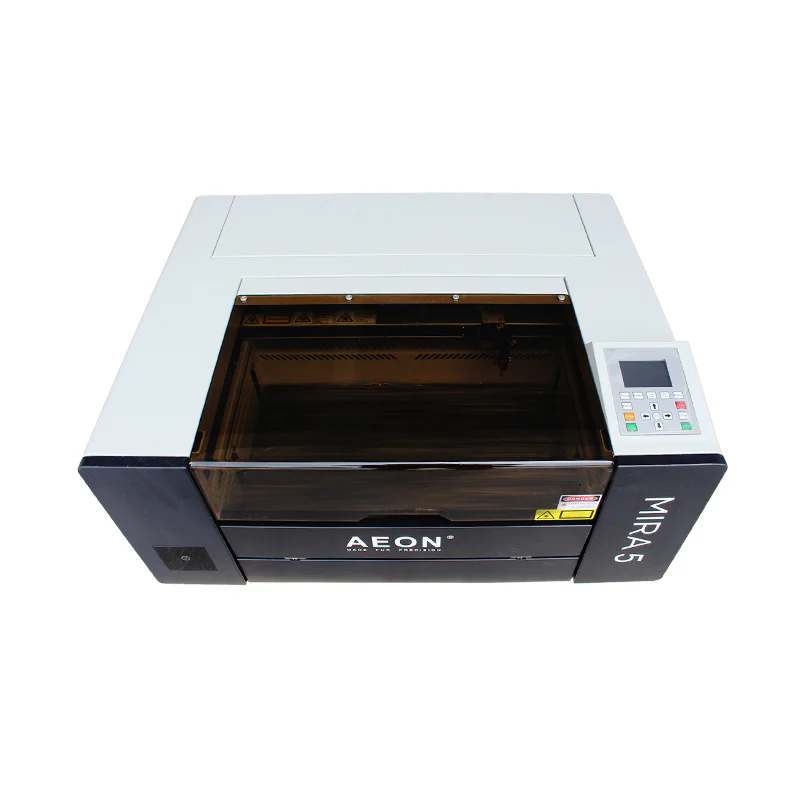

TheĀ AEON MIRA5 40W/60W Desktop Laser Engraver Cutter is a compact and elegant hobby-grade machine designed for laser engraving. With a working area of 500*300mm, it is perfect for individuals with limited space who desire the best desktop laser engraving machine for their room. The machine features a built-in water cooler, exhaust fan, and air pump, ensuring optimal performance and convenience. It's user-friendly design and impressive capabilities make it an ideal choice for hobbyists seeking a high-quality laser engraver for their creative projects.
Features:
- Faster than others: The MIRA5 boasts a Customized stepper motor, premium Taiwan Linear Guide rail, and Japanese bearing, resulting in a maximum engraving speed of up to 1200mm/sec and an acceleration speed of up to 5G. This makes it two to three times faster than conventional machines available in the market.
- Clean pack Technology:Ā The MIRA5's Clean pack design provides a solution by safeguarding the linear guide rail from dust, effectively reducing the need for maintenance and ensuring a superior outcome for your projects.
- All-in-one design:Ā TheĀ AEON MIRA5Ā has all these functions built-in, very compact and clean.Ā just put it on the table, plugin, and play.
- Software:Ā With RDWorks software, you can easily create simple designs. For a more advanced user experience, upgrade to LightBurn. If you have experience in graphic design, you can import graphics directly from CorelDraw, AutoCAD, and Illustrator using the convenient plugins.
- Multi-Communication:Ā The MIRA5 was built with a high-speed multi-communication system. You can connect to your machine by Wi-Fi, USB cable, or LAN network cable, and transfer your data by USB Flash disk. The machine has 128 MB of memory and an LCD screen control panel. With off-line working mode when your electricity is down and reboot machine will run on stop position.
- Effective Table and front pass-through door:Ā The MIRA5 got a ball screw electric up & down the table, steady and precise. Z-Axis height is 120mm, the front door can be openedĀ and fit longer materials through the door

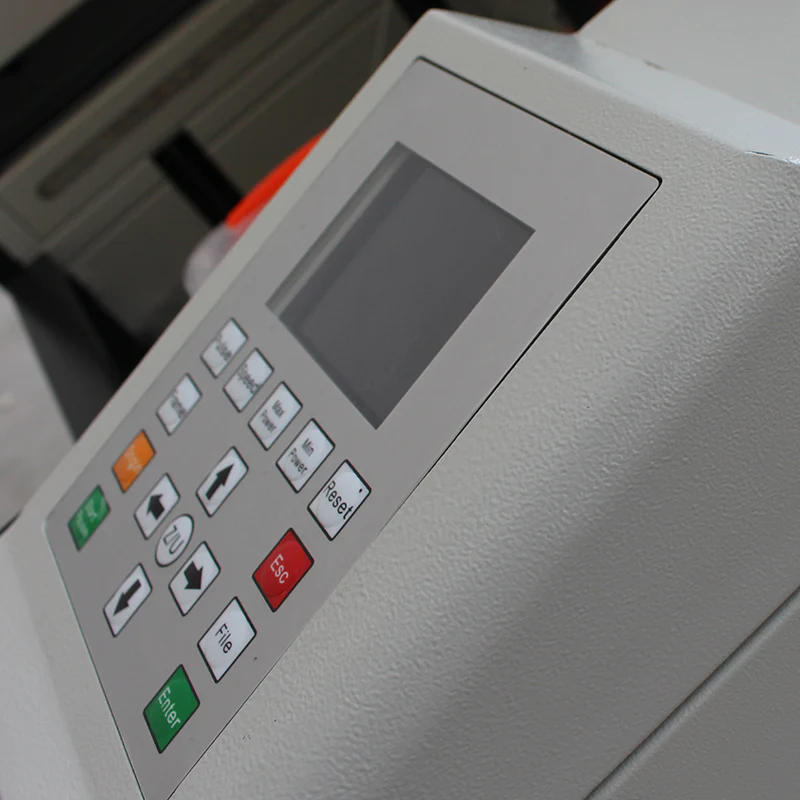

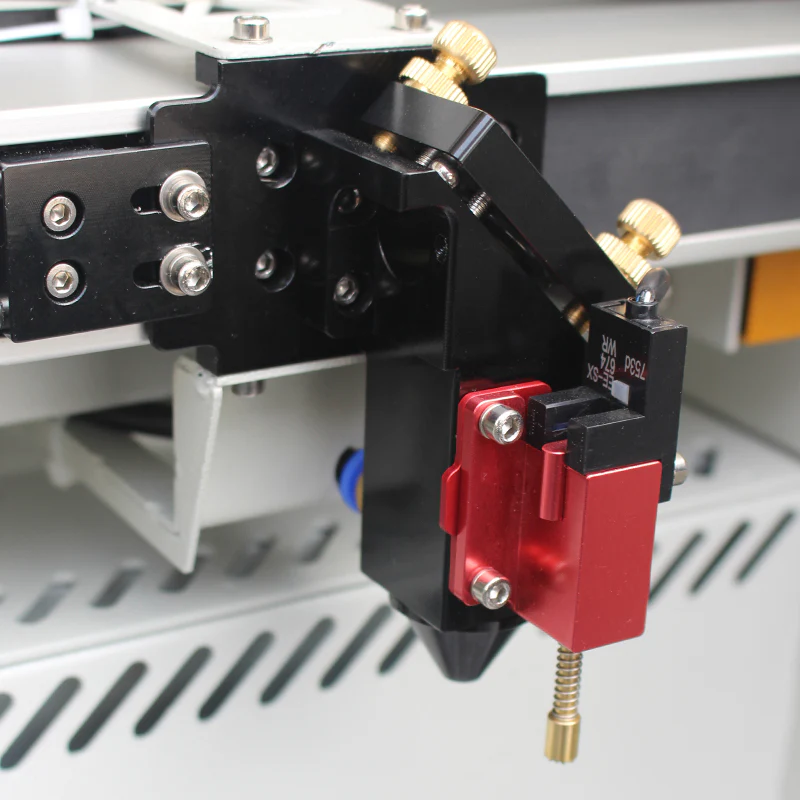

- Focus Easier:Ā The MIRA5 can install the newly designedĀ Autofocus. The focus for the laser canāt be easier. Just a press with the autofocus on the control panel will find its focus automatically. The autofocus device height can be adjustable manually very easily, and it can be installed and replaced very easily, too.
- Strong and Modern Body:Ā The Case is made up of a very thick galvanized steel plate, which is very strong. The painting is powder-type and looks much better. The design is much more modern, which fits seamlessly in a modern house. The LED illumination inside the machine makes it shinning in the darkroom like a superstar.
Specificationsļ¼
Ā
| Model | Mira 5 | |
|---|---|---|
| Working Area | 11Ā 3/4ā³ x 19Ā 3/4ā³ | |
| Machine Size | 35Ā 1/2ā³ x 28ā³ x 16Ā 1/2ā³ | |
| Machine Weight | 265 lbs. (120kg) | |
| Machine Packing Weight | 320 lb | |
| Packing Size | 39Ā 3/8ā³ x 31Ā 1/2ā³ x 22ā³ | |
| Laser Tube | CO2 Glass Tube | |
| Z-Axis Travel | 4-Ā¾ā (120mm) | |
| Air Assist | 18W Built-In Air Pump | |
| Cooling | 34W Built-In Water Pump | |
| Blower | 45W Built-In Blower | |
| Input Voltage | 120V AC Single Phase | |
| Amperage | 15A Dedicated Circuit | |
| Frequency | 60 Hz | |
| Rated Power | 1200W | |
| Engraving Speed | 0-1200mm/second | |
| Cutting Speed | 0-500mm/second | |
| Cutting Thickness | 0-20mm (depends on different materials) | |
| Max Acceleration Speed | 5G | |
| Laser Optical Control | 1-100% Set by software | |
| Minimum Engraving Size | Minimum Font Size 1.0mm x 1.0mm | |
| Max Scanning Precision | 4000DPI | |
| Locating Precision | <=0.01mm | |
| Worktable | Honeycomb + Blade | |
| Red Dot Positioning | Combiner Type | |
| Built-in WIFI | Included | |
| Auto Focus | Included | |
| Engraving Software | LightBurn, RD works | |
| File Formats Supported | AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA | |
| Compatible Software | CorelDraw, Photoshop, AutoCAD, Inkscape, or any software that can export into the supported file formats | |
| Add-Ons | Roller Rotary, Rotary Chuck, Stand, Fume Extractor, Remote Control, Camera | |
Select Availability
Select Power
From $6,068.61
CLEARANCE MIRA 5 5030 40W 60W Laser Cutter Engraver Machineā
$6,068.61
More Images
CLEARANCE MIRA 5 5030 40W 60W Laser Cutter Engraver Machine
CLEARANCE SALE
Use code VPD5NYRPN7NH for a discount of Ā£1,050.00 (net), including stand.
TheĀ AEON MIRA5 40W/60W Desktop Laser Engraver Cutter is a compact and elegant hobby-grade machine designed for laser engraving. With a working area of 500*300mm, it is perfect for individuals with limited space who desire the best desktop laser engraving machine for their room. The machine features a built-in water cooler, exhaust fan, and air pump, ensuring optimal performance and convenience. It's user-friendly design and impressive capabilities make it an ideal choice for hobbyists seeking a high-quality laser engraver for their creative projects.
Features:
- Faster than others: The MIRA5 boasts a Customized stepper motor, premium Taiwan Linear Guide rail, and Japanese bearing, resulting in a maximum engraving speed of up to 1200mm/sec and an acceleration speed of up to 5G. This makes it two to three times faster than conventional machines available in the market.
- Clean pack Technology:Ā The MIRA5's Clean pack design provides a solution by safeguarding the linear guide rail from dust, effectively reducing the need for maintenance and ensuring a superior outcome for your projects.
- All-in-one design:Ā TheĀ AEON MIRA5Ā has all these functions built-in, very compact and clean.Ā just put it on the table, plugin, and play.
- Software:Ā With RDWorks software, you can easily create simple designs. For a more advanced user experience, upgrade to LightBurn. If you have experience in graphic design, you can import graphics directly from CorelDraw, AutoCAD, and Illustrator using the convenient plugins.
- Multi-Communication:Ā The MIRA5 was built with a high-speed multi-communication system. You can connect to your machine by Wi-Fi, USB cable, or LAN network cable, and transfer your data by USB Flash disk. The machine has 128 MB of memory and an LCD screen control panel. With off-line working mode when your electricity is down and reboot machine will run on stop position.
- Effective Table and front pass-through door:Ā The MIRA5 got a ball screw electric up & down the table, steady and precise. Z-Axis height is 120mm, the front door can be openedĀ and fit longer materials through the door
- Focus Easier:Ā The MIRA5 can install the newly designedĀ Autofocus. The focus for the laser canāt be easier. Just a press with the autofocus on the control panel will find its focus automatically. The autofocus device height can be adjustable manually very easily, and it can be installed and replaced very easily, too.
- Strong and Modern Body:Ā The Case is made up of a very thick galvanized steel plate, which is very strong. The painting is powder-type and looks much better. The design is much more modern, which fits seamlessly in a modern house. The LED illumination inside the machine makes it shinning in the darkroom like a superstar.
Specificationsļ¼
Ā
| Model | Mira 5 | |
|---|---|---|
| Working Area | 11Ā 3/4ā³ x 19Ā 3/4ā³ | |
| Machine Size | 35Ā 1/2ā³ x 28ā³ x 16Ā 1/2ā³ | |
| Machine Weight | 265 lbs. (120kg) | |
| Machine Packing Weight | 320 lb | |
| Packing Size | 39Ā 3/8ā³ x 31Ā 1/2ā³ x 22ā³ | |
| Laser Tube | CO2 Glass Tube | |
| Z-Axis Travel | 4-Ā¾ā (120mm) | |
| Air Assist | 18W Built-In Air Pump | |
| Cooling | 34W Built-In Water Pump | |
| Blower | 45W Built-In Blower | |
| Input Voltage | 120V AC Single Phase | |
| Amperage | 15A Dedicated Circuit | |
| Frequency | 60 Hz | |
| Rated Power | 1200W | |
| Engraving Speed | 0-1200mm/second | |
| Cutting Speed | 0-500mm/second | |
| Cutting Thickness | 0-20mm (depends on different materials) | |
| Max Acceleration Speed | 5G | |
| Laser Optical Control | 1-100% Set by software | |
| Minimum Engraving Size | Minimum Font Size 1.0mm x 1.0mm | |
| Max Scanning Precision | 4000DPI | |
| Locating Precision | <=0.01mm | |
| Worktable | Honeycomb + Blade | |
| Red Dot Positioning | Combiner Type | |
| Built-in WIFI | Included | |
| Auto Focus | Included | |
| Engraving Software | LightBurn, RD works | |
| File Formats Supported | AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA | |
| Compatible Software | CorelDraw, Photoshop, AutoCAD, Inkscape, or any software that can export into the supported file formats | |
| Add-Ons | Roller Rotary, Rotary Chuck, Stand, Fume Extractor, Remote Control, Camera | |
